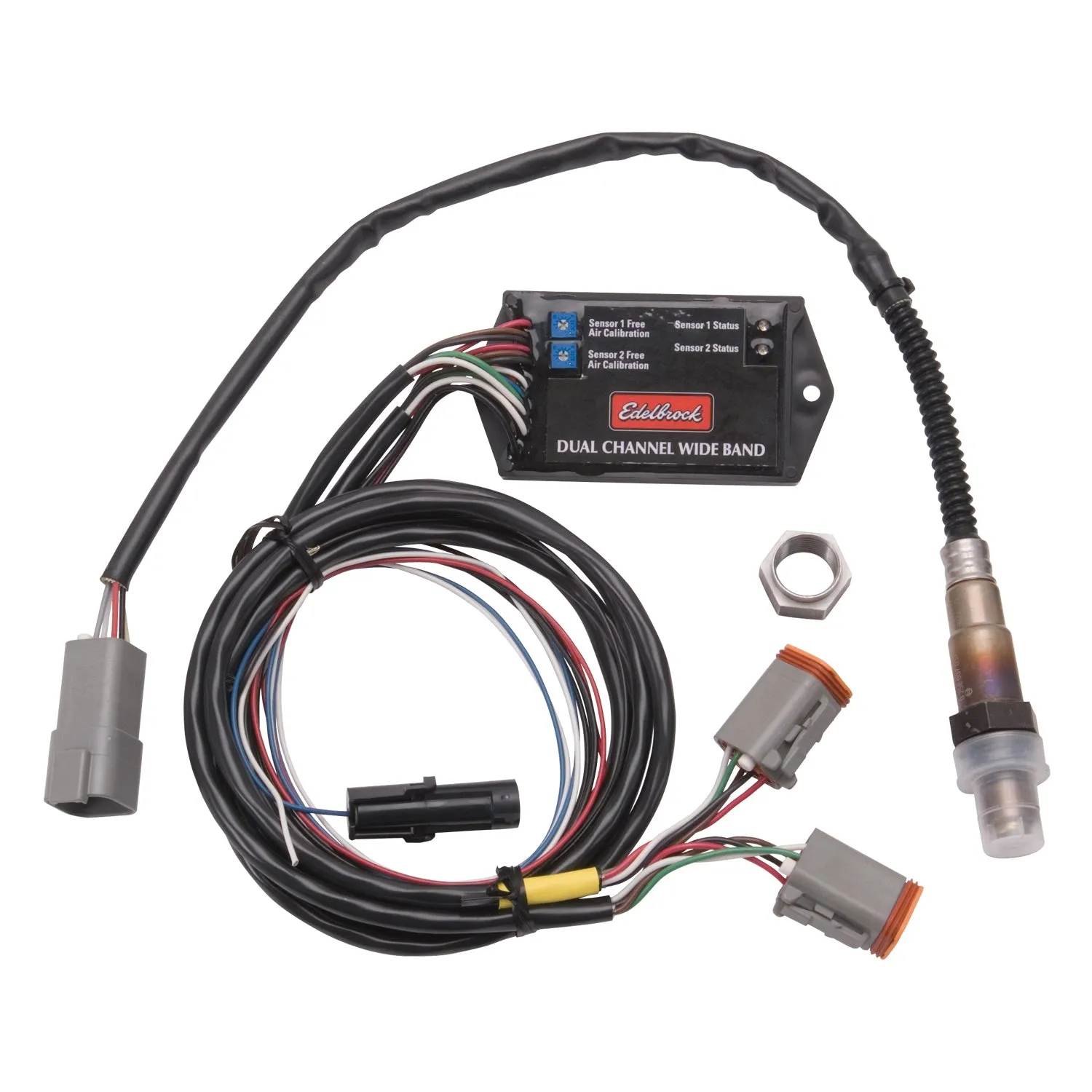

Edelbrock #3532 Wide Band Air-Fuel Ratio Monitor is designed for use with any aftermarket EFI kits as well as Data Logging system. The kit comes complete with a water proof enclosure and a wide band oxygen sensor. Features two independent 0-5V analog outputs that are linearly scaled with 0V=10.0 AFR and 5V=20.0 AFR. Includes interface unit, sensor, weld-in bungs and all necessary wiring. Does not have internal data logging capability and only includes a single oxygen sensor.

Specifications:

Bezel Color	NA
Body Color	Black
Description_ABR	AFR Monitor
Description_DEF	Air / Fuel Ratio Gauge
Description_DES	AFR MONITOR
Description_EXT	Edelbrock Wide Band Air-Fuel Ratio Monitor. For use with all aftermarket data logger and EFI kits.
Description_FAB	0-5V Analog AFR Output
Description_FAB	Compact Waterproof Enclosure
Description_FAB	Current Draw Is Approximately 1 Amp
Description_FAB	Easy Free-Air Calibration Procedure
Description_FAB	Highly Accurate
Description_FAB	Improved Closed Loop Control Of Pro-Flo EFI Sys.
Description_FAB	Suitable For Automotive And Motorcycle Apps.
Description_FAB	Wide Supply Voltage Range From 11-18V
Description_INV	Air-Fuel Ratio Monitor Wide Band
Description_KEY	Edelbrock; 3592; AFR; Air Fuel Ratio; Wide Band; Oxygen Sensor; O2; Pro-Flo; EFI; Carbureted; Data Logging;
Description_LAB	Wide Band Air/Fuel Ratio Interface for Pro-Flo 2, XT, XT-R EFI Systems-1
Description_LAB	Wide Band Air/Fuel Ratio Interface for Pro-Flo 2; XT; XT-R EFI Systems-1
Description_MKT	Edelbrock #3532 Wide Band Air-Fuel Ratio Monitor is designed for use with any aftermarket EFI kits as well as Data Logging system. The kit comes complete with a water proof enclosure and a wide band oxygen sensor. Features two independent 0-5V analog outputs that are linearly scaled with 0V=10.0 AFR and 5V=20.0 AFR. Includes interface unit, sensor, weld-in bungs and all necessary wiring. Does not have internal data logging capability and only includes a single oxygen sensor.
Description_SHO	{ Sellable : Yes }
Description_SHP	{ eo : 0in.}
Description_TRA	0-5V analog AFR output for interface to EFI, Data or Dyno instrumentation
Description_TRA	Allows improved Closed Loop control of the current Pro-Flo EFI systems
Description_TRA	Current draw is approx. 1 amp
Description_TRA	Easy free-air calibration procedure corrects for sensor aging effects
Description_TRA	Highly accurate with less than /- 0.10 AFR error over 10.3 - 19.5 AFR range
Description_TRA	Suitable for automotive, motorcycle, and other 4-Stroke engine applications
Description_TRA	Wide supply voltage range from 11-18V allows operation from battery on small engines or race vehicles with out an alternator
Description_TRA	• Allows improved Closed Loop control of the current Pro-Flo EFI systems • Suitable for automotive; motorcycle; and other 4-Stroke engine applications • Highly accurate with less than ± 0.10 AFR error over 10.3-19.5 AFR range • Easy free-air calibration procedure corrects for sensor aging effects • 0-5V analog AFR output for interface to EFI; Data or Dyno instrumentation • Wide supply voltage range from 11-18V allows operation from battery on small engines or race  vehicles with out an alternator • Current draw is approx. 1 amp
Face Color	Black
Grade Type	Performance
height	4.25
Illuminated	Yes
length	6.25
Mounting Hardware Included	No
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Size	N/A
Type	Wide Band
Universal Or Specific Fit	Universal
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
weight	1.35
width	6.25
Wire Gauge Measurement	18
Wiring Harness Length	7.0
