Name: ExplorIR®-W-X 20% CO2 Sensor
SKU: 312765

Product Details ＋

The ExplorIR®-W-X (formerly known as CozIR Wide Range) is a low-power, high-performance CO2 sensor that can measure up to 20% CO2 levels. It is ideal for closed-loop sampling applications or battery operation in portable sampling instruments.

Features

0-20% carbon dioxide measurement
Durable, low power consumption
Industry-standard serial communication
Ideal for battery-powered systems, or harsh, rugged environments

Models

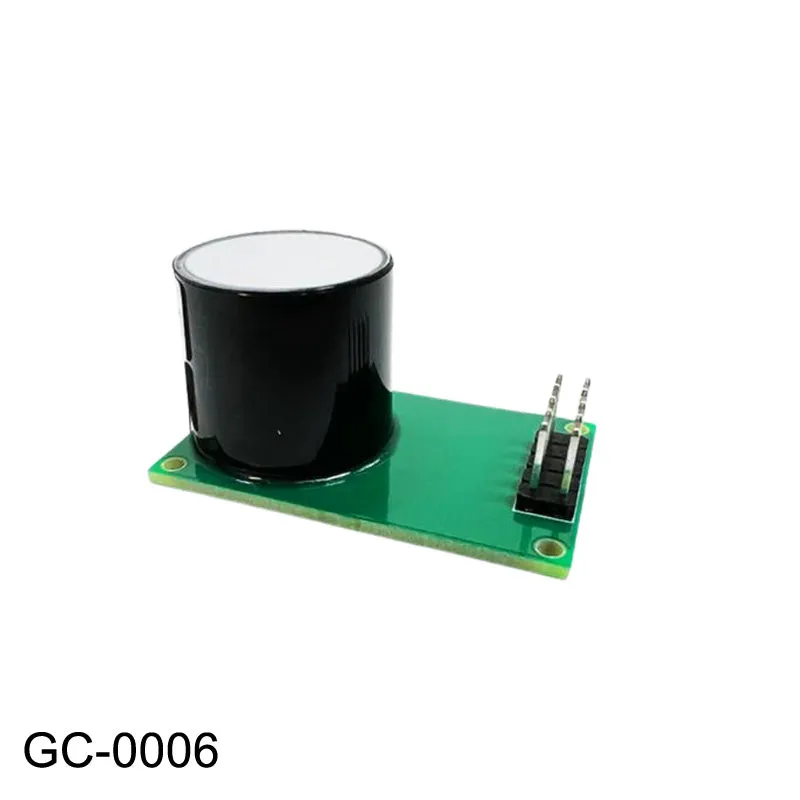

GC-0006 ExplorIR®-W-X 20% CO2 Sensor Only - for integration into high-volume OEM products. for wholesale pricing on large quantities of this sensor.

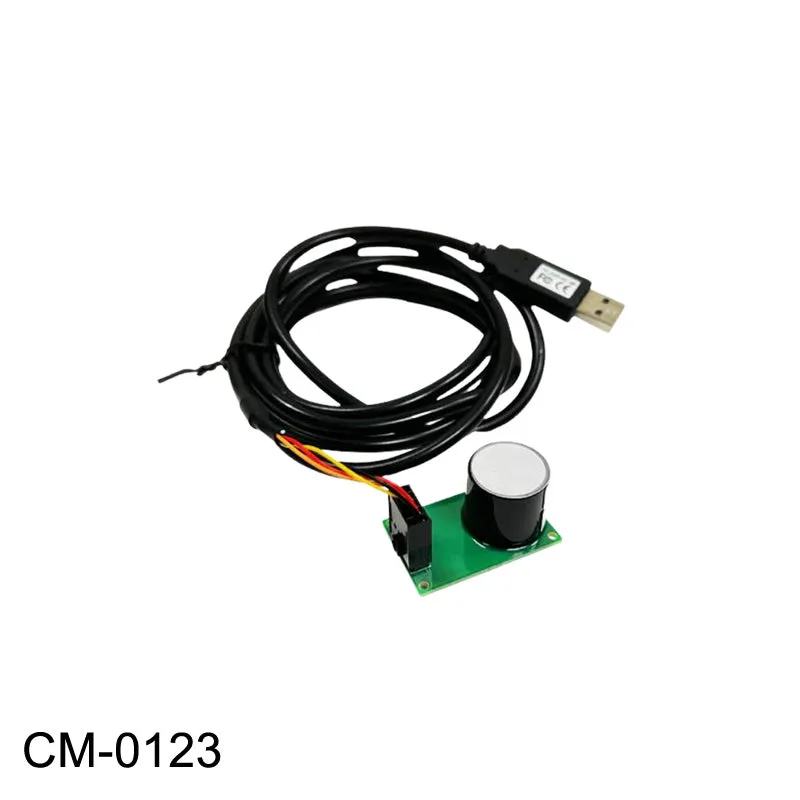

CM-0123 ExplorIR®-W-X 20%Sensor Development Kit - Easy to use, simply plug the sensor module into your PC via the included serial UART to USB cable. Use our free GasLab® software to measure and graph carbon dioxide, configure the sensor, or for data logging.

Specifications

Measurement Range: 0-20% CO2
Sensing Method: NDIR with Gold-plated optics

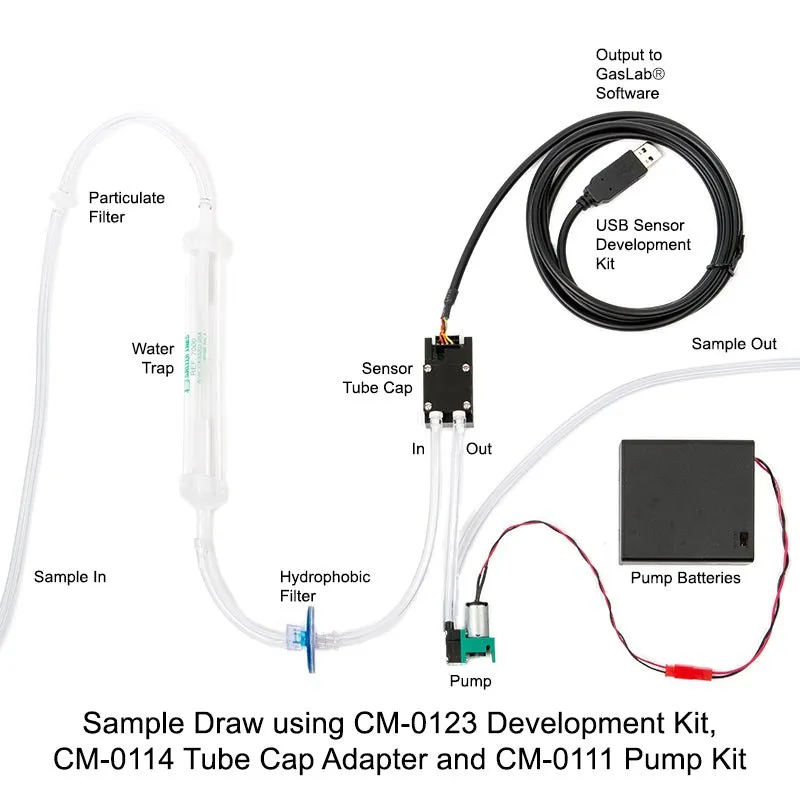

Sample Method: Diffusion (default) or sampling with an optional tube adapter
Accuracy: ±70 ppm ± 5% of reading
Resolution: 10ppm
Sample Rate: 500 ms (2 Hz) measurement interval
Response Time Filter: 4 secs to 2 mins (user configurable)
Serial communications: 9600/8/1/N
Warm-up Time: < 10s
Operating Conditions: 0°C to 50°C, 950 mBar to 10 Bar
Weight: 8 grams
Sensor Life Expectancy: > 15 years

Electrical/Mechanical

Power Input: 3.3 ±0.1 volt DC < 3.5 mW
Peak current: 33mA
Devkit includes a 6’ (1.8m) USB cable (non-standard)

Warranty

90 days - See CO2Meter Terms and Conditions

Documents

Free Easy-to-use GasLab™ Software

This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
