Name: HPA-1 Headphone Amp
SKU: 312703

Product Details ＋

The HPA-1 headphone amplifier from Pass Labs is one of our most popular headphone amps at Moon Audio. Featuring a single-ended quarter-inch headphone output and a large and extremely accurate volume control, the HPA-1 is compatible with most full-size headphones on the market. It features a Class A amplifier and outputs enough power to drive most power-hungry headphones with ease, such as the . The HPA-1 features low feedback, wide bandwidth, and a direct coupled MOSFET output stage.

The other side of the audiophile coin for the HPA-1 is that it can also function as a high-quality standalone line-level preamplifier. The preamp function can stand on its own with preamps in much higher price ranges, and represents a tremendous value for a unit of this size. You're getting a high-end, Class A headphone amplifier and preamplifier in one device.

Dragon Cable Recommendation: we recommend pairing the HPA-1 Headphone Amplifier with the . The Black Dragon Interconnect is one of our best-selling cables at Moon Audio. Sold in Pairs, it is our top-of-the-line copper conductor-based interconnect. With a braided geometry and amazing shielding, this interconnect is a remarkable solution where noise isolation is key. The is also recommended to provide the cleanest and unbridled power to your high-end amplifier.

Features:

Works with headphones with impedances of 15 ohms to 600 ohms.
Designed as a power amplifier rather than a typical headphone amplifier to be able to drive low impedance planar headphones.
Low feedback wide bandwidth discreet design.
Class A direct coupled Mosfet output stage.
Custom low noise Toroidal power transformer with a Faraday shield.
Discreet regulated power supply for audio circuits.

The HPA-1 is at the moment the only Pass Lab product specifically aimed at the personal stereo/headphone market. It was optimized around headphones with impedances between 15 ohms and 600 ohms and originally targeted the newly emerging planar magnetic "over ear' headphone use. The input JFET stage was modeled after some of our in-house phono-stage circuit topologies, taking advantage of their relatively low noise and ability to provide a rich and detailed soundstage. The output stage is a direct coupled MOSTET based circuit taking advantage of their ability to drive a wide range of impedances with very little feedback.

Planer magnetic drivers, generally fall into a class of drivers requiring medium amounts of power. The HPA-1 serves this market with distinction. Falling outside of the medium power "main-steam" requirement headphone user are very high efficiency IEM (in ear monitors) and very low efficiency "Ear Speakers". The HPA-1 should not however be dismissed out of hand for either of these applications. High efficiency devices, call for extraordinary low noise circuits and low efficiency ear speakers at times require very high power.

The same warmth, body and drive the HPA-1 imparts to the headphone experience translates to how it sounds as a single ended (RCA connection) line-stage. If you have a power-amp and loudspeakers that need a little additional authority, the HPA-1 might be the perfect addition with the added benefit of being headphone friendly.

Designed to Drive Headphones With Ease

The Pass Labs HPA-1 was originally designed as a power amplifier to allow the amp to drive low impedance planar magnetic headphones. You'll find a Class A headphone amp that can drive any headphone in the 15-600 ohms range with complete ease. The HPA-1 features an incredible dynamic range across the entire frequency response spectrum, resulting in amazingly robust sound quality and an impactful listening experience every time you put on a pair of headphones.

Pass labs created a truly unique headphone amplifier with the HPA-1 - it's not every day that a company designs a power amplifier concept only to turn it into a headphone amp later. Pass Labs pulled out all the stops with a Class A amplifier, offering major performance gains over competitors in similar price ranges. At the heart of the HPA-1 you'll find a custom, low-noise, shielded toroidal power transformer that feeds a discrete power supply for the audio circuits. It's important to note that Pass Labs designed the power supply this way for extremely low noise and superior isolation for the audio circuit. The quality of the power supply goes a long way towards the sound quality of a headphone amplifier, and the Pass Labs HPA-1 is second to none.

High-End Design With High-End Features

The HPA-1 features low-feedback and wide-bandwidth discrete amplifier circuit designs - specifically utilizing J-Fet input stages and Class A biased, direct-coupled MOSFET output stages. This helps the HPA-1 to drive headphones with loads between 15-600 ohms with efficiency. No matter if your headphones are dynamic drivers or even the more power-hungry planar magnetic drivers, the HPA-1 Headphone Amplifier is up to the task. The amp offers an incredibly rich and detailed music presentation and a dynamic performance with all the power that the amplifier is capable of outputting.

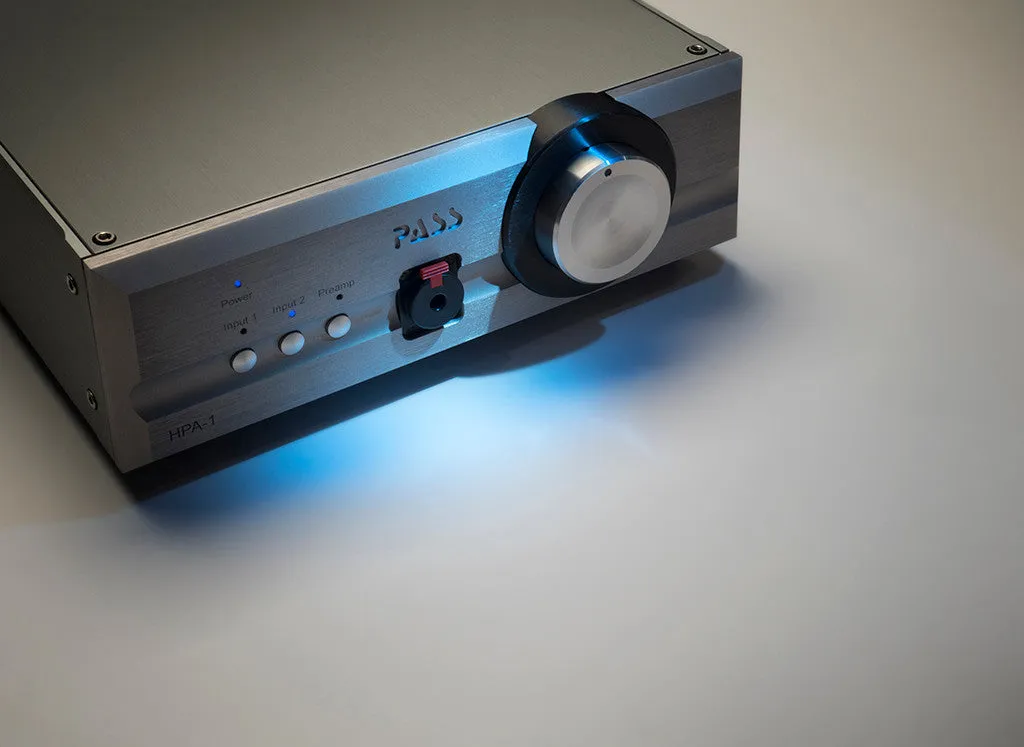

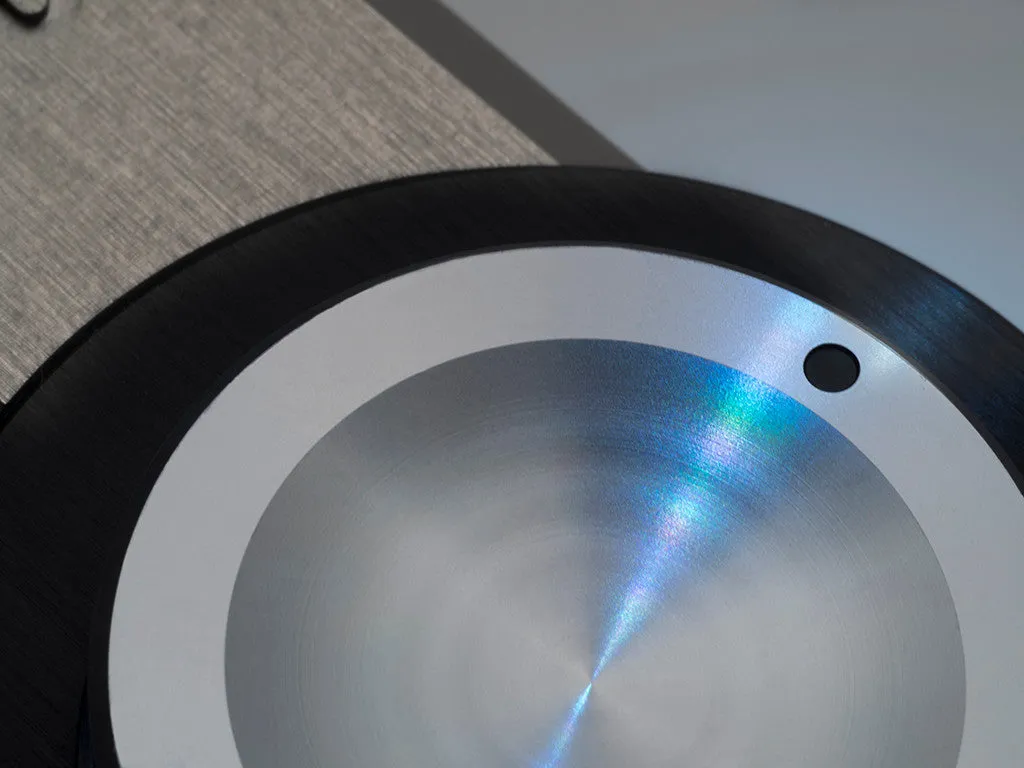

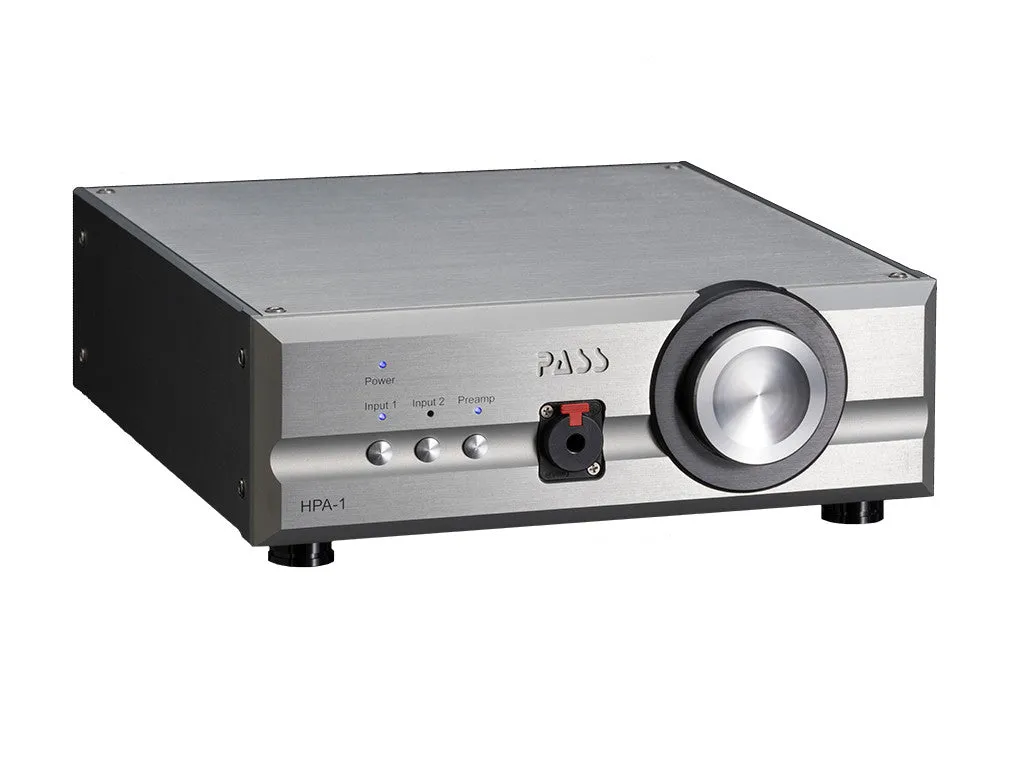

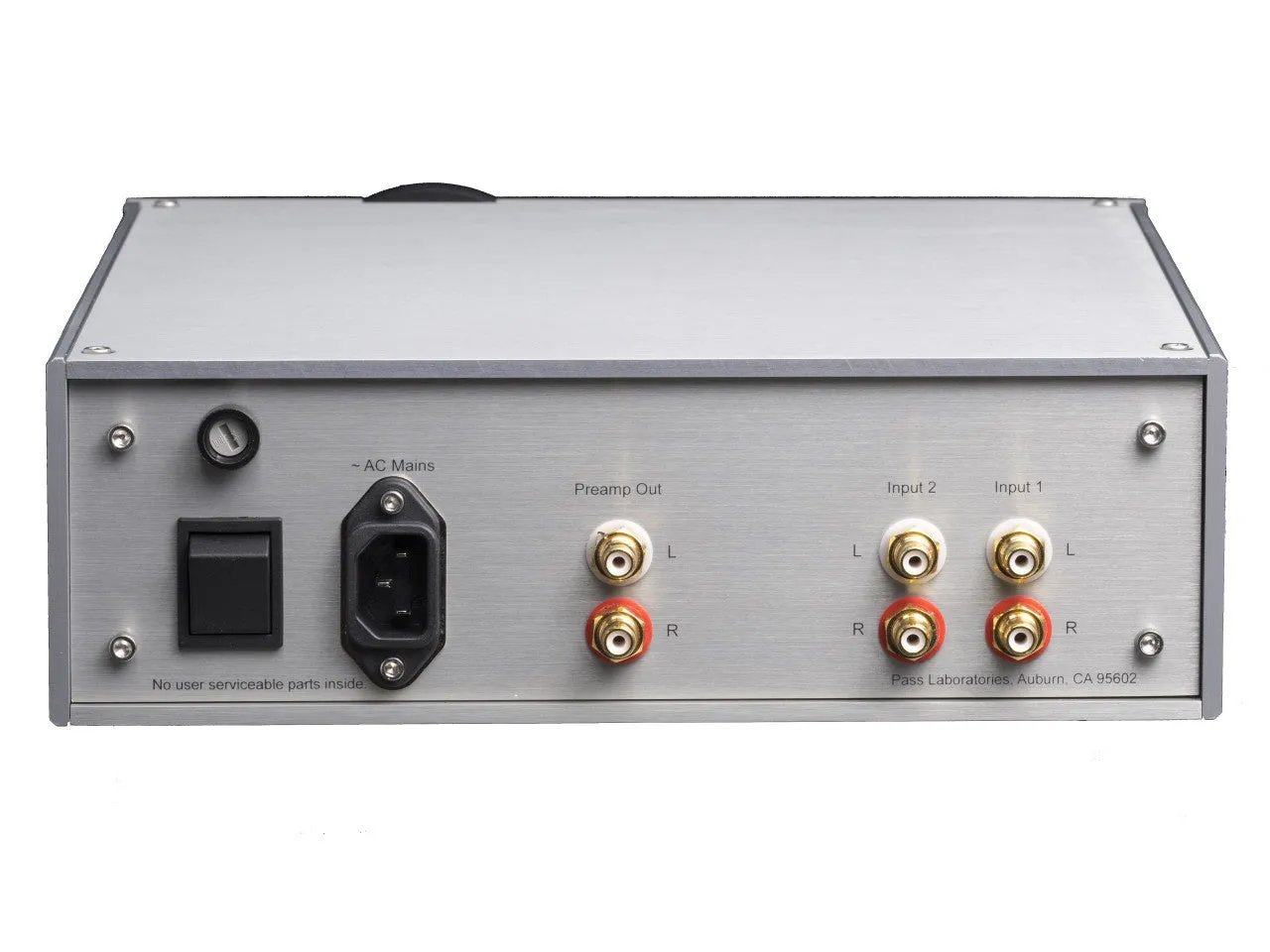

The HPA-1 features a quarter-inch single-ended headphone jack on the front panel, a large volume control/rotary knob that is connected to an ALPS potentiometer, and three buttons that select input or engage the preamp output. On the rear panel, you'll find two pairs of single-ended analog inputs via RCA jacks, a set of switchable "preamp" line-level output jacks, the power switch, and the fuse. The HPA-1 is designed with the customary brushed-aluminum chassis that matches the rest of the Pass Labs product lineup. Sleek and refined - modern and high-end.

Pass Labs and First Watt

Pass Labs and First Watt were founded by hi-fi legend Nelson Pass. After co-founding and later selling Threshold Audio, Pass began working out of his Auburn, California, home in the early 1990s to develop prototypes of single-ended Class A amplifier designs under the name Pass Labs. Pass Labs quickly became known for its commercially produced Aleph, X, and XA Series amps, and preamps. Pass later started First Watt as a passion project focusing on low-power amps for a niche audiophile audience. Today, Pass splits his time between the two companies, with production happening in Pass Labs' facility in Foresthill, California, USA. Some of Pass Lab’s most notable products include the HPA-1 Headphone Amplifier, their integrated amp series (featuring the Pass Labs INT-25, Pass Labs INT-60, and the Pass Labs INT-250), the Pass Labs XA25, and more. If you’re looking for a monoblock amplifier, stereo amplifier, integrated amplifier, or headphone amplifier, then Pass Labs has everything you need for your high-end audio. Visit passlabs.com for more info.

What's in the Box?

HPA-1 Headphone Amplifier
Power Cable
Manual and Warranty

FAQ

What makes the Pass Labs HPA-1 a standout headphone amplifier?

The Pass Labs HPA-1 is designed more like a power amplifier than a typical headphone amp. It features a high-bias Class A operation with a discrete JFET input stage and a MOSFET output stage, providing high power and excellent sound quality. Its design ensures low noise and wide bandwidth, making it suitable for a wide range of headphones from 15 to 600 ohms. It has excellent tonality and midrange, making it a solid choice for audiophiles everywhere.

Can the HPA-1 drive high-impedance headphones effectively?

Yes, the HPA-1 can drive high-impedance headphones, such as the Beyer Dynamics DT880 with 600 ohms, with ease. Users report that it delivers good dynamics and volume even with hard-to-drive headphones, demonstrating its robust power and stability.

How does the HPA-1 perform as a preamplifier?

In addition to being a high-quality headphone amplifier, the HPA-1 also functions as a capable line preamplifier. It has two single-ended inputs and can be used for general system duties, although it lacks a remote control and balanced connections. Its minimalist design is appreciated for its simplicity and high performance. The input impedance, output impedance, and the overall output power make the HPA-1 a versatile piece of audiophile equipment.

What is the build quality of the Pass Labs HPA-1?

The HPA-1 boasts exceptional build quality, consistent with other Pass Labs products. It features a robust chassis made of brushed aluminum and includes high-quali
