| Product Attribute | Attribute Value |
|---|---|
| Connection Type | M12 |
| Connector Type | M14 |
| Housing Material | Nylon (PA) |
| IP Rating | IP67 |
| Mounting Style | Non-Flush |
| Mounting Type | Non-Flush |
| Operating Voltage Range | 15-44 VDC |
| Output | Analog |
| Primary Type | Inductive Proximity Sensors |
| Protection Class | Protection Class II |
| Shielding | Unshielded |
| Supply Voltage | 15-30 VDC |
| Temperature, Ambient | -13 to 176 F (-25 to 80 C) |

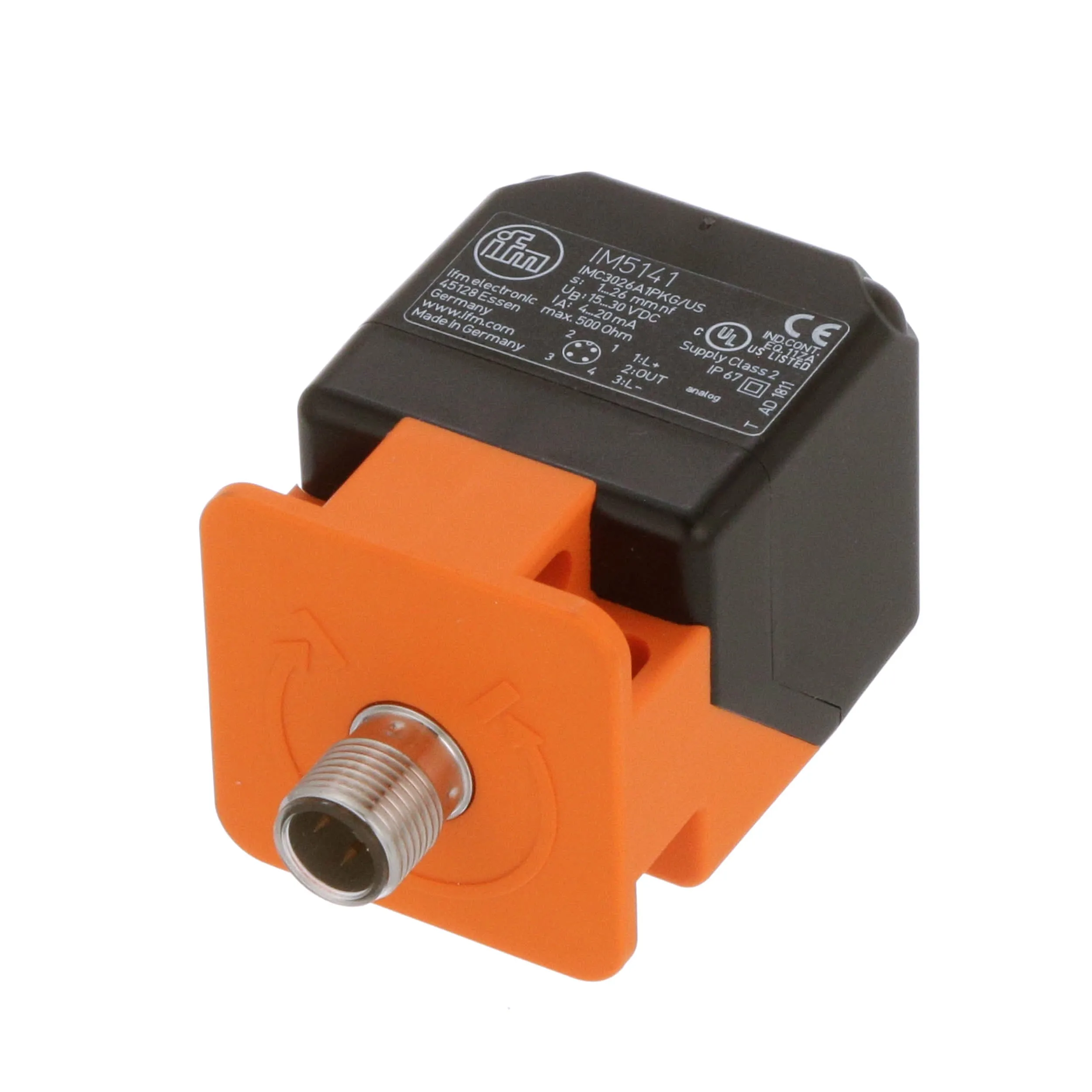

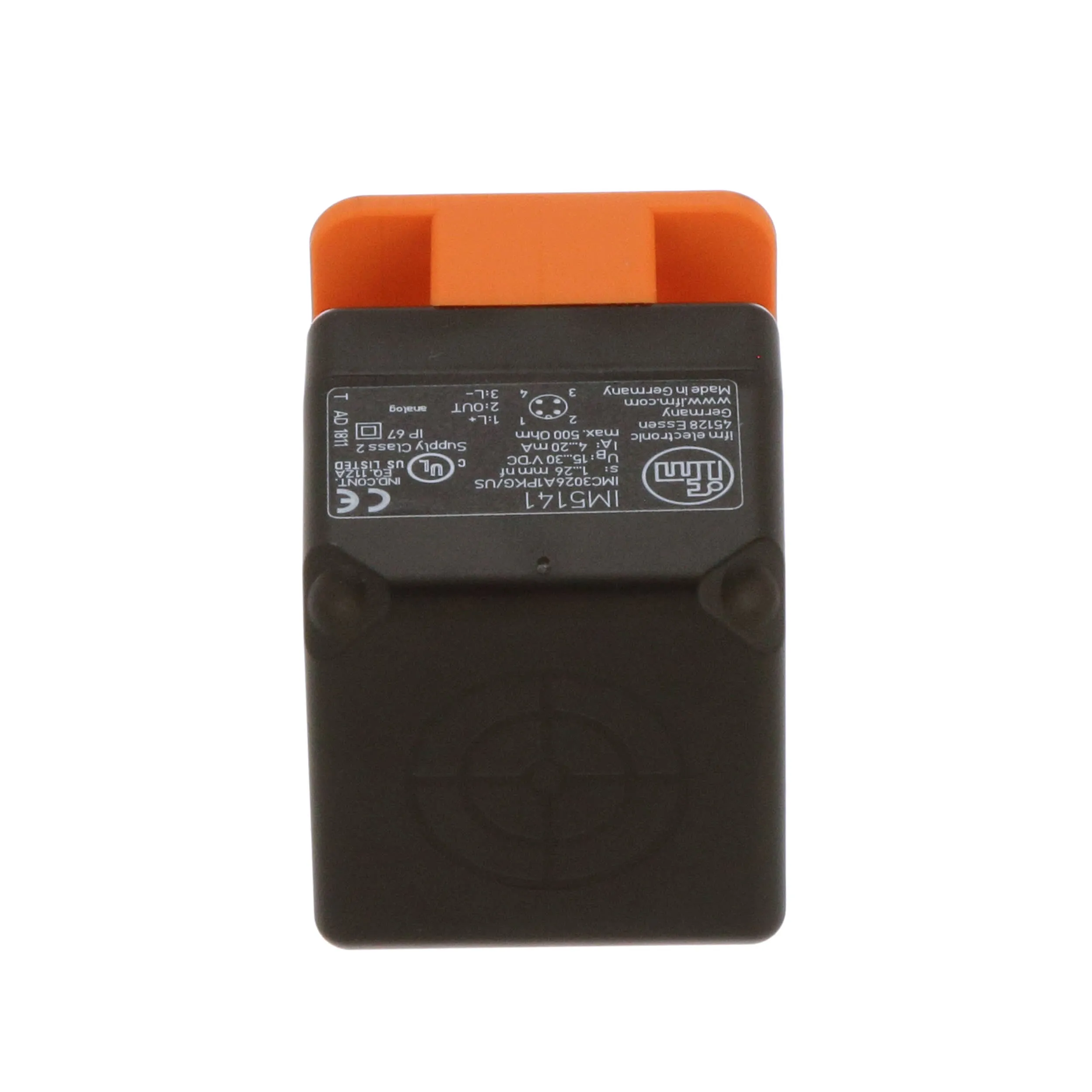

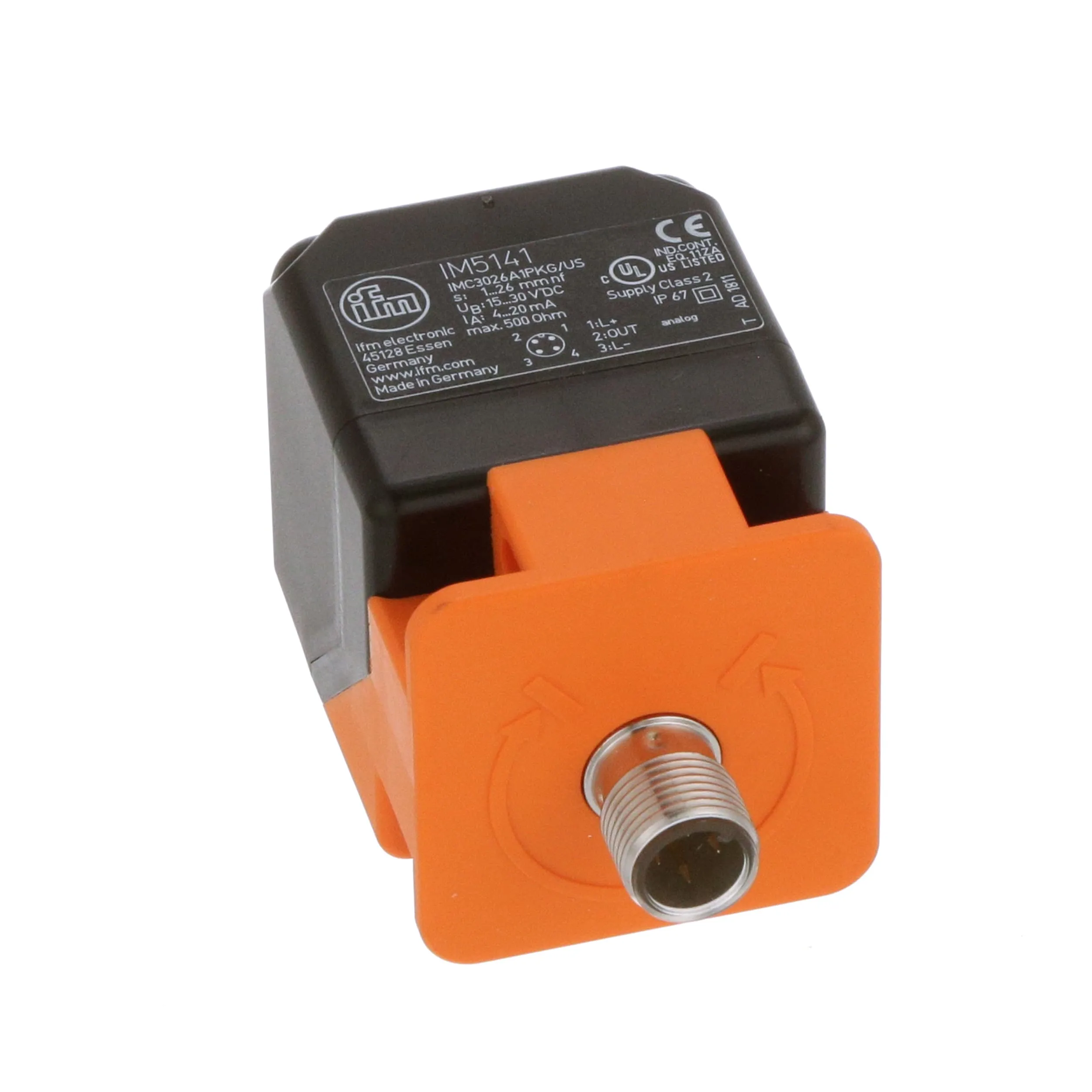

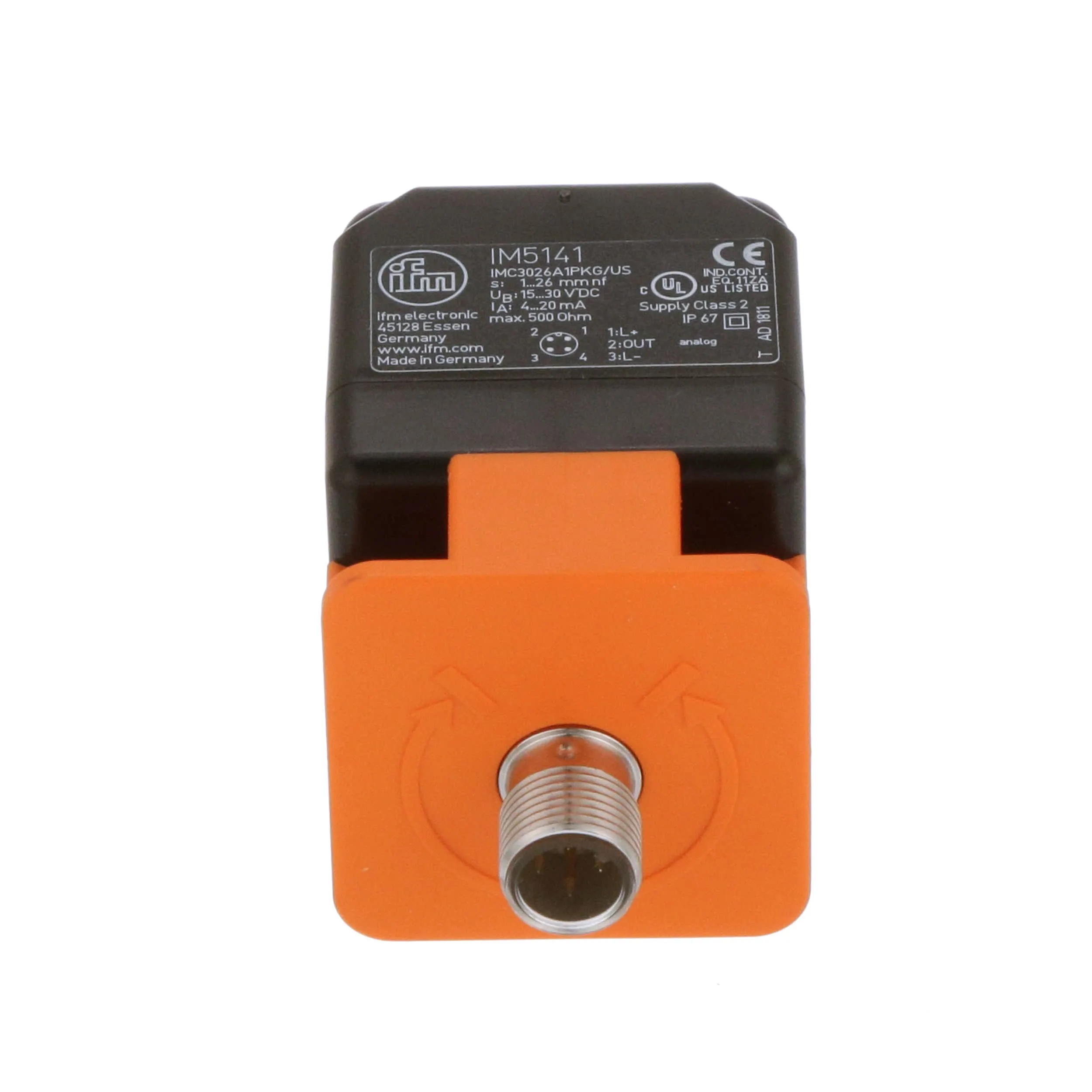

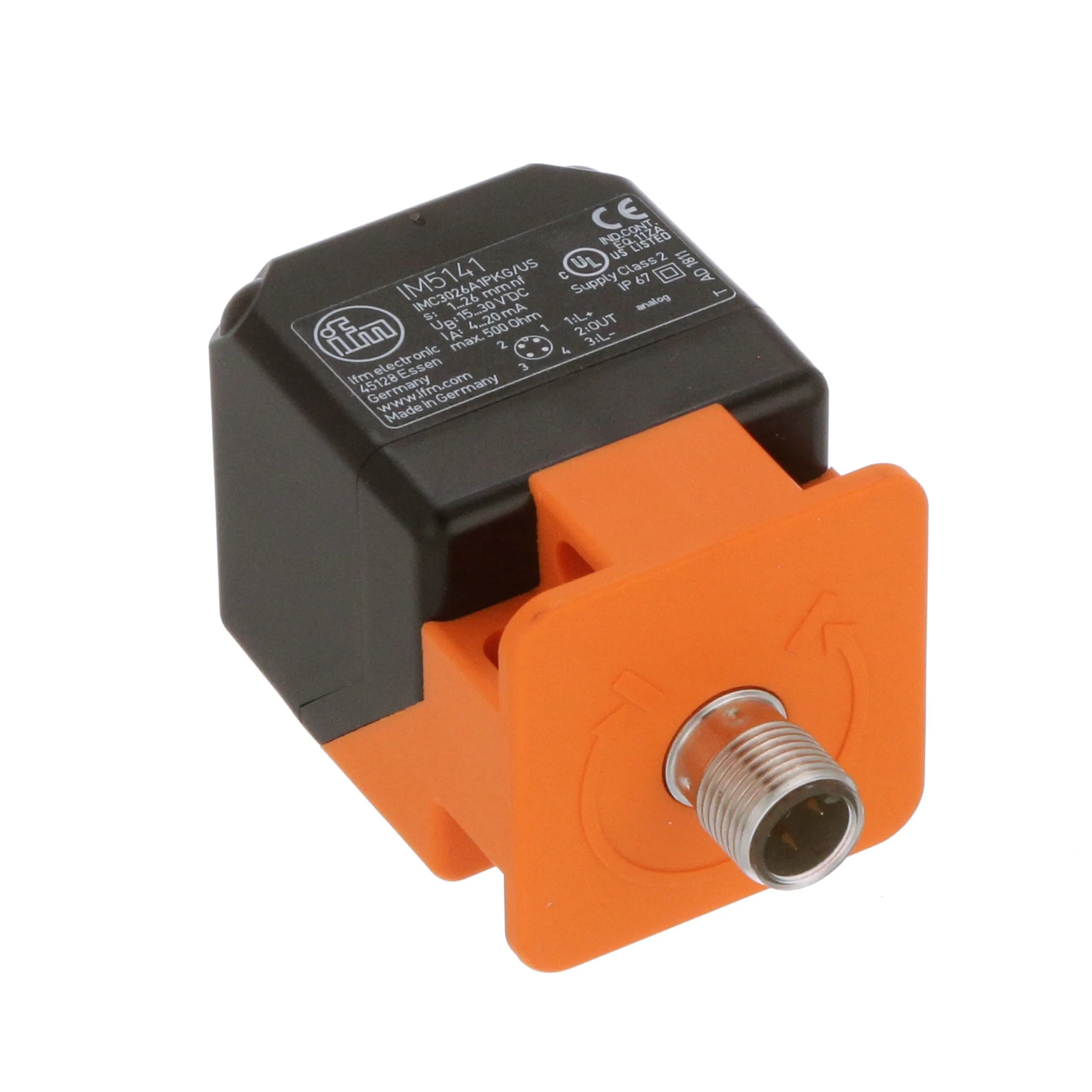

| Type | IM5141 |
Overview
In all automated processes sensors are necessary to provide the PLC with information. They supply the necessary signals for positions and limits, or serve as pulse pick-ups for counting tasks or for monitoring rotational speed. They offer ideal characteristics compared to mechanical switches: non-contact operation free from any wear and tear, high switching frequencies and accuracy. In addition, they are insensitive to vibration, dust and moisture. Inductive sensors detect all metals without contact.
Ifm’s rectangular inductive sensors are especially suited for conveying applications thanks to their long sensing ranges. To meet the demands of harsh industrial environments, each model comes with a robust plastic housing with high protection rating. The sensing face of ifm’s IM type sensor (40 x 40 mm) can be rotated in five different positions for flexible mounting even under adverse installation conditions. The two corner LEDs are clearly visible in any mounted position
Features:
