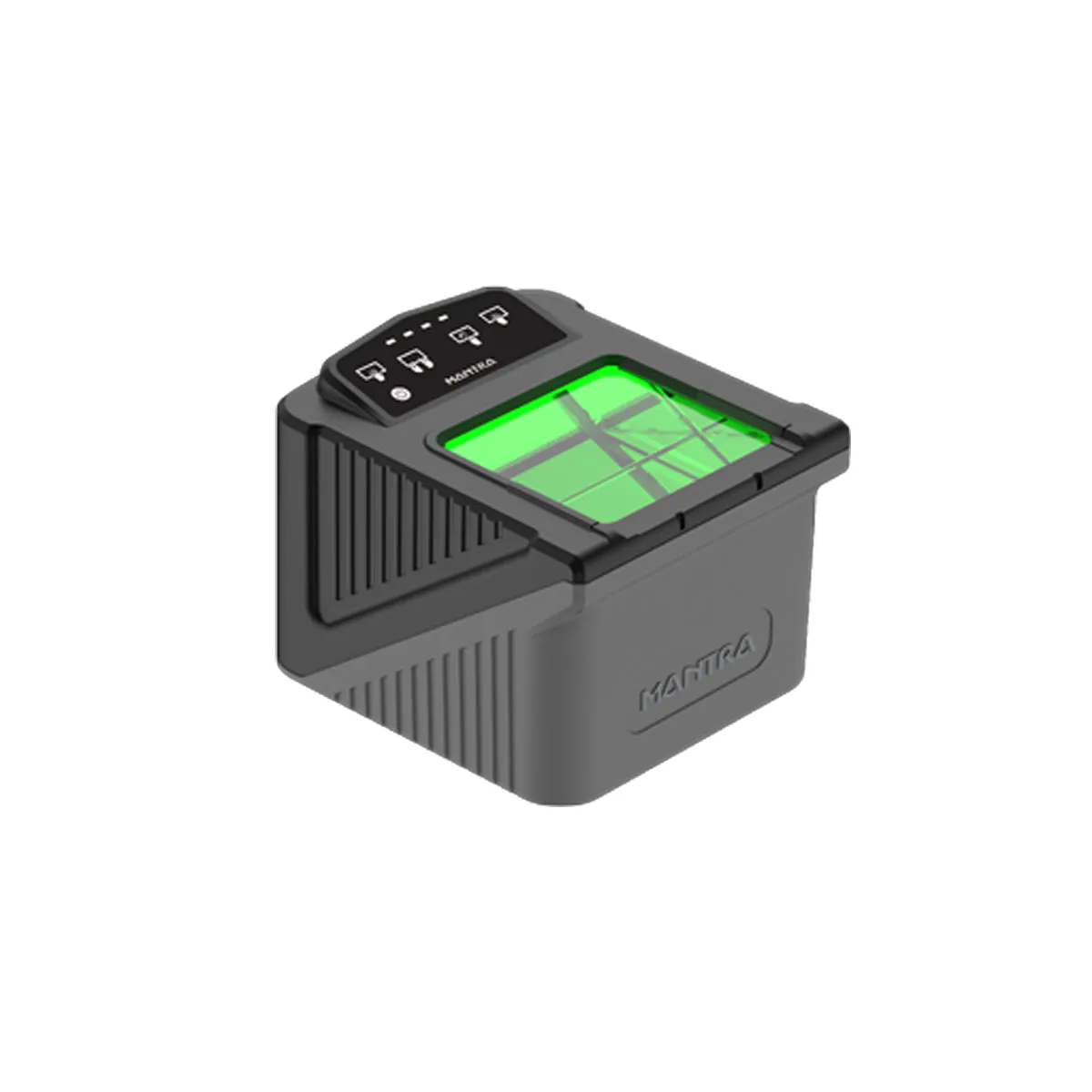

MORPHS is a unique & portable ten-print fingerprint capture device used to capture multi fingerprints. The device is ideal for delivering fast, accurate and reliable fingerprint capture results for biometric verification, identification and enrollment applications including indirect or direct sunlight; dusty conditions; and dry or dirty fingers. MORPHS is Appendix F and mobile ID FAP 60 certified. The FBI certification ensures that the reader meets stringent image quality conditions and interoperability standards to work with Automated Fingerprint Information System (AFIS) systems. MORPHS is widely used for enrolling citizens by local or central government organizations, UID-Aadhaar, NPR, National ID projects, World Bank and UNESCO schemes. Additionally, an ergonomic design combined with an easy-to-integrate SDK architecture makes MORPHS the perfect choice for system integrators and solution providers.
Benefits
- IP65 Water and dust protected rugged casing & platen covered by safety cover
- Device can perform indirect or direct sun - light condition (approx 100K Lux)
- Captured image quality certified by FBI's IAFIS Appendix-F & Mobile ID FAP60
- Excellent imaging performance with dusty conditions; and dry or dirty fingers, even when fingerprint surface is stained by ink
Features
- Supports Flat Capture
- WHQL certified Device Driver
- Better User Interface by LED Indicators
- FBI Appendix Certified
- USB 2.0, USB-IF Certified
- Scratch-Free Surface
- Water & Dust Protected Rugged Casing
- Under Direct Sunlinght up to 100K LUX
- Interchange Biometric standard
Tech Specs
| Fingerprint Sensor Type | Optical Scratch-Free Sensor |
| Pixel Resolution | 500 DPI /- 1% |
| Platen Area | 3.5 x 3.2 in. (90 x 81 mm) |
| Capturing Format | Flat Four fingers & Two thumbs |
| Active Platen Area | 3.2 x 3.0 Inch (81.2 x 76.2 mm) |
| Finger Image Pixels | 1600 x 1500 Pixels |
| Pixel Depth | 8 Bits/Pixel (256 Gray Level) |
| Capturing Speed | 3.3 F |
| Capture mode | Auto capture with built-in quality check (incorporates NIST quality considerations) |
| Interface | USB 2.0, USB-IF certified |
| Operating Voltage | 5V /- 5% (USB Powered Device) |
| Current Consumption | Operating : < 350 mA (Max) & Stand By : <80 mA (Max) |
| Operating Temperature | 0 to 50°C |
| Operating Humidity | 10-90% RH, non-condensing |
| ESD protection | Contact Discharge: /- 4kV, Air Discharge: /- 8kV |
| LED Indicators | Power, Status, and fingerprint image quality |
| Dimension | 173 x 147 x 121 mm |
| Weight | 3.6 lbs (1.6 kg) |
| Biometric Data Interchange Format | ISO 19794-4:2011 for Image Template, WSQ3.1, JPEG2000 |
| EMI / EMC Compliance | CE & FCC Part 15B class A |
| Environmental, Health and Safety | RoHS |
| Safety | EN/IEC 62368-1, IS 13252 (Part 1) |
| BIS | IS 13252 (Part 1) * |
| Image Quality | FBI’s IAFIS Appendix-F & Mobile ID FAP60 |
| Ingress Protection Rating | IP65 |
| Device Driver | WHQL certified |
| Operating System | Windows x86 & x64, Linux, Android |
