Product Details
＋
- 250 watts x 3 @ 8 Ohms / 400 watts x 3 @ 4 Ohms
- Adjustable gain for up to 6db over THX Reference level

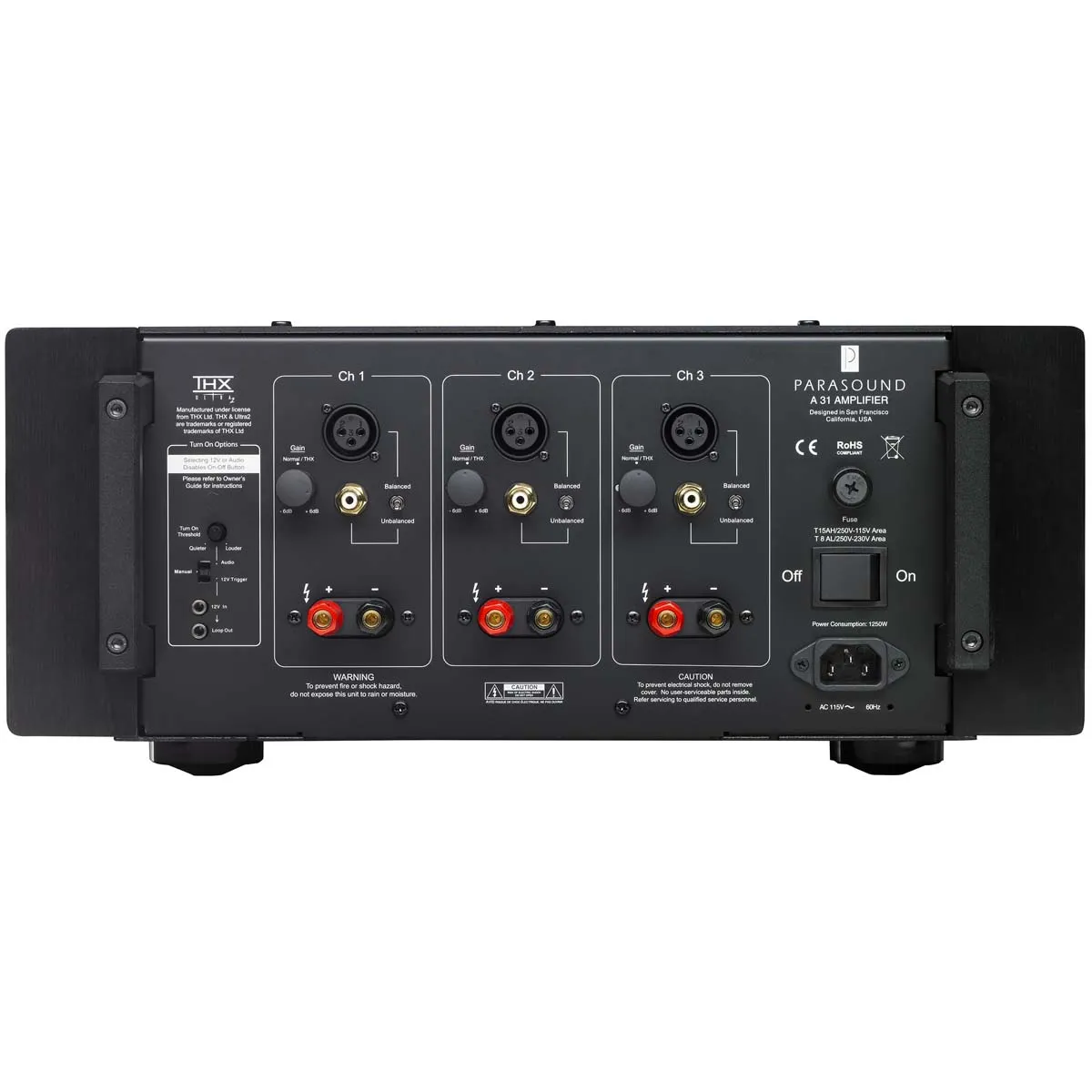

- Unbalanced RCA and balanced XLR inputs
- Circuitry designed by legendary John Curl
- High bias class A/AB operation
- Direct coupled (no capacitors or inductors in signal path)
- Complementary MOSFET driver stage and JFET input stage
- 24 beta-matched 15 amp, 60 MHz bipolar output transistors
- 1.5 kVA encapsulated toroid power transformer with independent secondary windings for each channel
- 98,400 µF power supply filter capacitance
- DC Servo and relay protection circuits
- AC present, channel status, high-temperature indicators
- Heavy-duty 24k gold-plated 5-way speaker terminals
- THX Ultra2 certified
- Auto turn-on by 12v trigger or audio signal
