Name: SprintIR®-W 20% CO2 Sensor
SKU: 408256

Product Details ＋

The SprintIR®-W Carbon Dioxide Sensor is one of the fastest (20 measurements per second), most accurate CO2 sensors on the market. The sensor uses advanced solid-state technology and offers no moving parts, making it ideal for high-speed sensing requirements.

Features

High-speed sensing: 20 Hz
Low power/energy consumption: 35 mW
Vibration and shock resistant
Integrates with wireless IoT networks such as Zigbee®, Wi-Fi, LoRa, Bluetooth®, SigFox, and EnOcean

Models

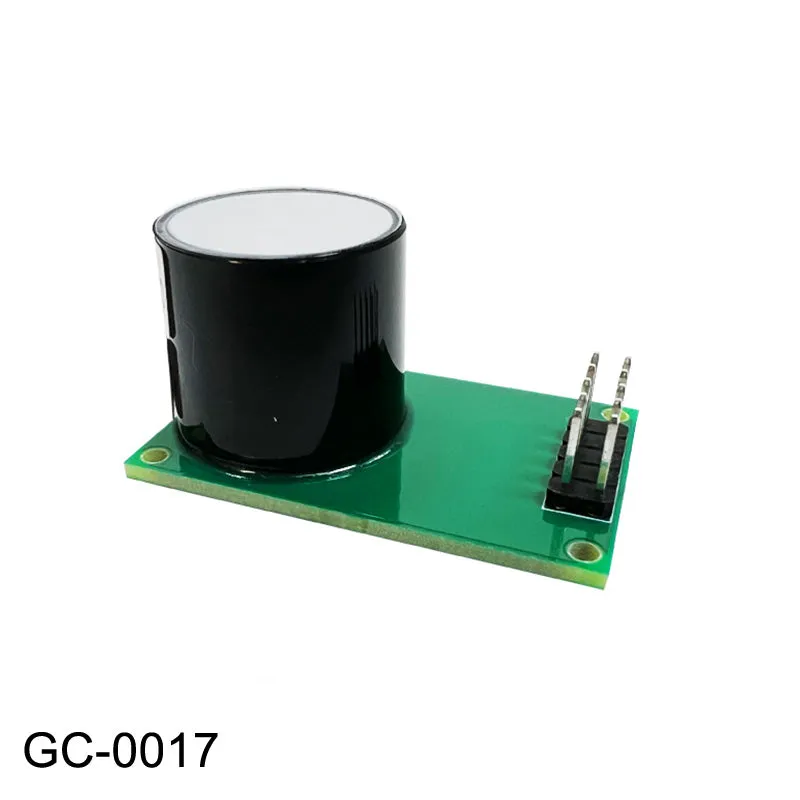

GC-0017 SprintIR®-W 20% CO2 Sensor Only - for integration into high-volume OEM products. for wholesale pricing on large quantities of this sensor.

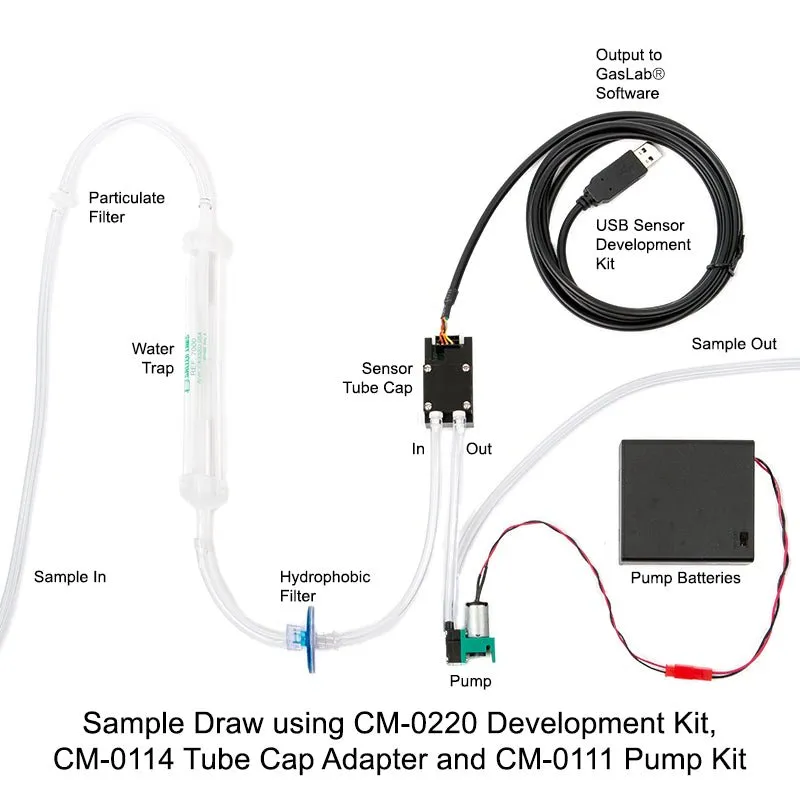

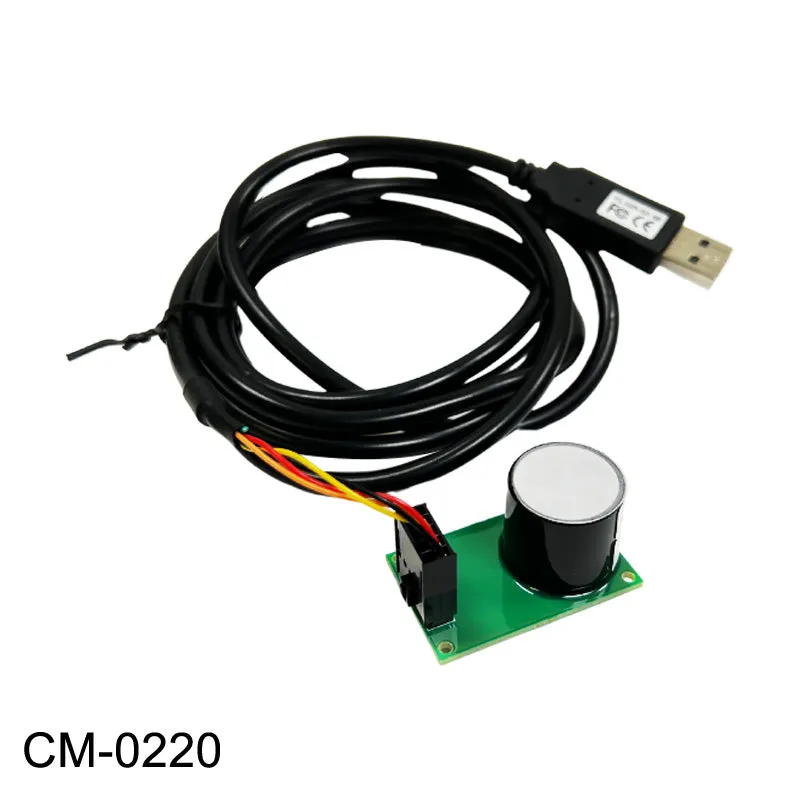

CM-0220 SprintIR®-W 20% CO2 Sensor Development Kit - Easy to use, simply plug the sensor module into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide, to configure the sensor or for data logging.

Specifications

Sensing Method: NDIR with Gold-plated optics
Measurement range: 20% (200,000ppm) CO2
Sample Method: Diffusion (Tube cap adapter available)
Accuracy: ±70 ppm ± 5% of reading
Resolution: 10ppm
Warm Up Time: <1 min to operational (< 2 secs to initial reading)
Sensor Life Expectancy: > 15 years

Electrical/Mechanical

Power Input: 3.2-5.5VDC (3.3V recommended)
Peak current: 100mA
Average Current: <15mA
Weight: 8 grams (w. tube cap 29 grams)
UART Only 9600/8/1/N

Warranty

90 days - See CO2Meter Terms and Conditions

Case Studies

Free Easy-to-use GasLab™ Software

This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
