The TX Oxygen Sensor with Transmitter is designed for industrial applications where and 6-24VDC power input and industry-standard RS485 or 4-20mA outputs are required.
The TX Sensor Development Kits adds a RS485 Modbus RTU USB FTDI cable, a 120VAC wall adapter and our free GasLab® software for rapid application prototyping, real-time data graphing, data logging, and the ability to zero and span calibrate the sensor.
Features
- Low Drift & Cross-sensitivity
- RS485 Modbus RTU or 4-20mA analog outputs
- Pressure and Temperature Sensors built-in
- Built to reliably measure gas levels in harsh environments
Models

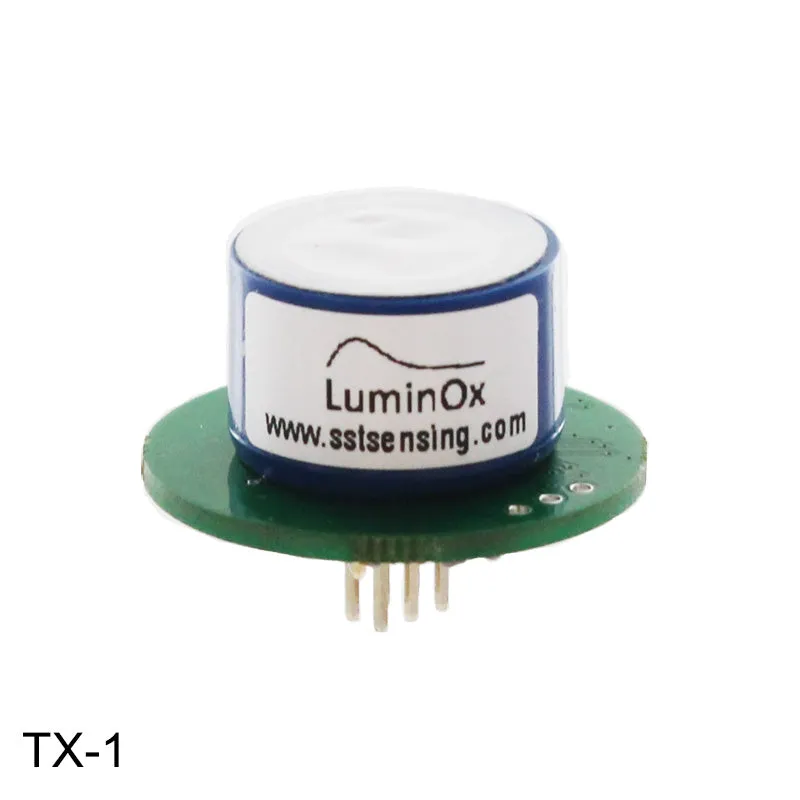

- TX-1 Sensor with TX Board– 6-24VDC power requirements and RS485 Modbus RTU or 4-20mA outputs for integration into industrial applications.

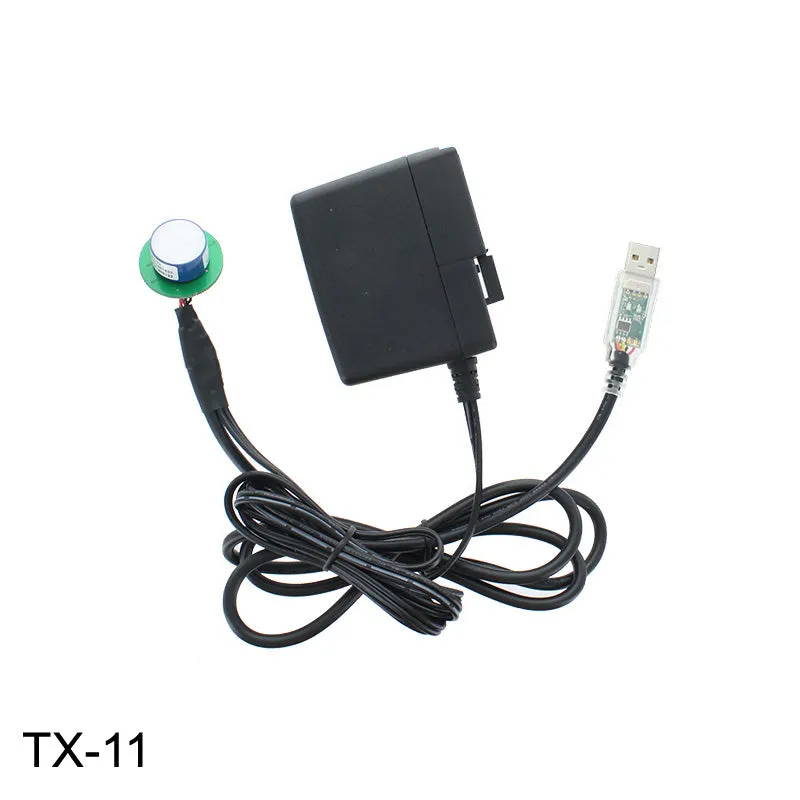

- TX-11 Sensor Development Kit – Adds a RS485 Modbus RTU USB FTDI cable, 120VAC wall adapter and free GasLab® Windows software for data logging and calibration.
Specifications
- Measuring Gas: Oxygen
- Measurement Range: 0.1 to 25% O2
- Sensing Method: Fluorescence quenching by oxygen
- Measurement Interval: 1 Sample/second
- Response Time: < 60 seconds
- Warm-Up Time: < 60 Seconds at 72°F (22°C)
- Temperature Accuracy: /- 2 degrees C
- Power: 6-24VDC
- Operating Temperature: -30°C to 60°C
- Barometric Pressure Range: 500 to 1200 mba
- Lifetime: > 5 years
Warranty
- See CO2Meter Terms and Conditions
Free Easy-to-use GasLab® Software
The Devkit uses GasLab® software for setup, calibration, data logging, and real-time data analysis via USB. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
System Requirements
- Windows XP SP2 or newer
- Microsoft .Net 3.5 Runtime Libraries
Tube cap adapters easily convert 20mm standard gas sensors from diffusion to sampling sensors. Molded polymer. Tube cap adapters are not pre-installed. For accurate results you must mount the tube cap permanently.
includes all the tools you need to utilize the tube-cap adapters as part of a sampling sensor system.
is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.
provide a constant flow of air across the sensor with a tube cap - perfect for bench-top testing of sensors for closed-loop sampling applications.
